S - Vertical conveyor

The S-vertical conveyor from AMC advanced machinery components GmbH is a continuous conveyor system for efficient vertical conveying of unit loads between two levels.

S - Vertical conveyor

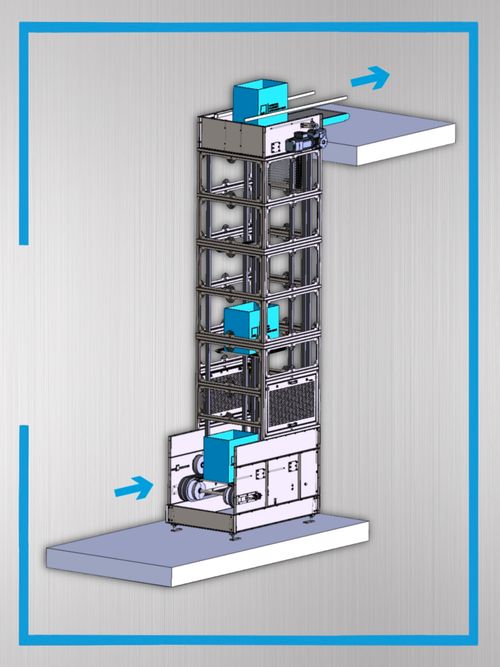

AMC S vertical conveyor

The S-vertical conveyor from AMC advanced machinery components GmbH is a continuous conveyor system for the efficient vertical transportation of unit loads between two levels. The conveyor path is linear, with loading and unloading points opposite each other, which enables directional, reliable transportation without deflection.

Technical design
→ Drive:

Specialized rubber block chain with embedded high-strength steel cables for maximum pulling force and low-wear, slip-free running.

→ Conveyor platforms:

Horizontally aligned platforms ensure gentle product transport, even with delicate or irregularly shaped goods.

→ Modularity:

System consists of aluminum profiles, steel tube frames or stainless steel (for food industry), individually configurable.

→ Performance:

Conveying capacity of up to 3,000 conveyed goods per hour, depending on speed requirements and number of platforms.

Technical advantages
→ Compact design:

Less space required than spiral or inclined conveyors.

→ Low maintenance:

Maintenance-free chain, no lubrication or re-tensioning required.

→ Smooth running:

Reduced noise and vibrations.

→ Product protection:

Horizontal conveying reduces the risk of damage.

→ Modular:

Easy replacement of platforms and lugs.

Areas of application
→ Typical conveyed goods:

Cartons, trays, containers, bags, luggage, barrels, rims, tires, etc.

→ Individual design:

Adaptation to conveying capacity, conveyed material and ambient conditions.

The AMC S vertical conveyor is ideal for continuous operation thanks to its robust, modular design, low-maintenance technology and gentle product handling.
The standardized design enables short delivery times and high flexibility.

The person responsible at AMC is Daniel Redmann, who has many years of experience in the design and use of the product.
He looks forward to hearing from you.
